Week 11: WorkManager¶

WorkManager is a library for deferrable background work. WorkManager is the recommended task scheduler on Android for deferrable work.

Blur-o-matic app¶

These days, smartphones are almost too good at taking pictures. Gone are the days when a photographer might take a reliably blurry picture of something mysterious.
In this codelab, you’ll work on Blur-O-Matic, an app that blurs photos and saves the results to a file. Was that the Loch Ness monster or just a blur sotong? With Blur-O-Matic, no one will ever know!

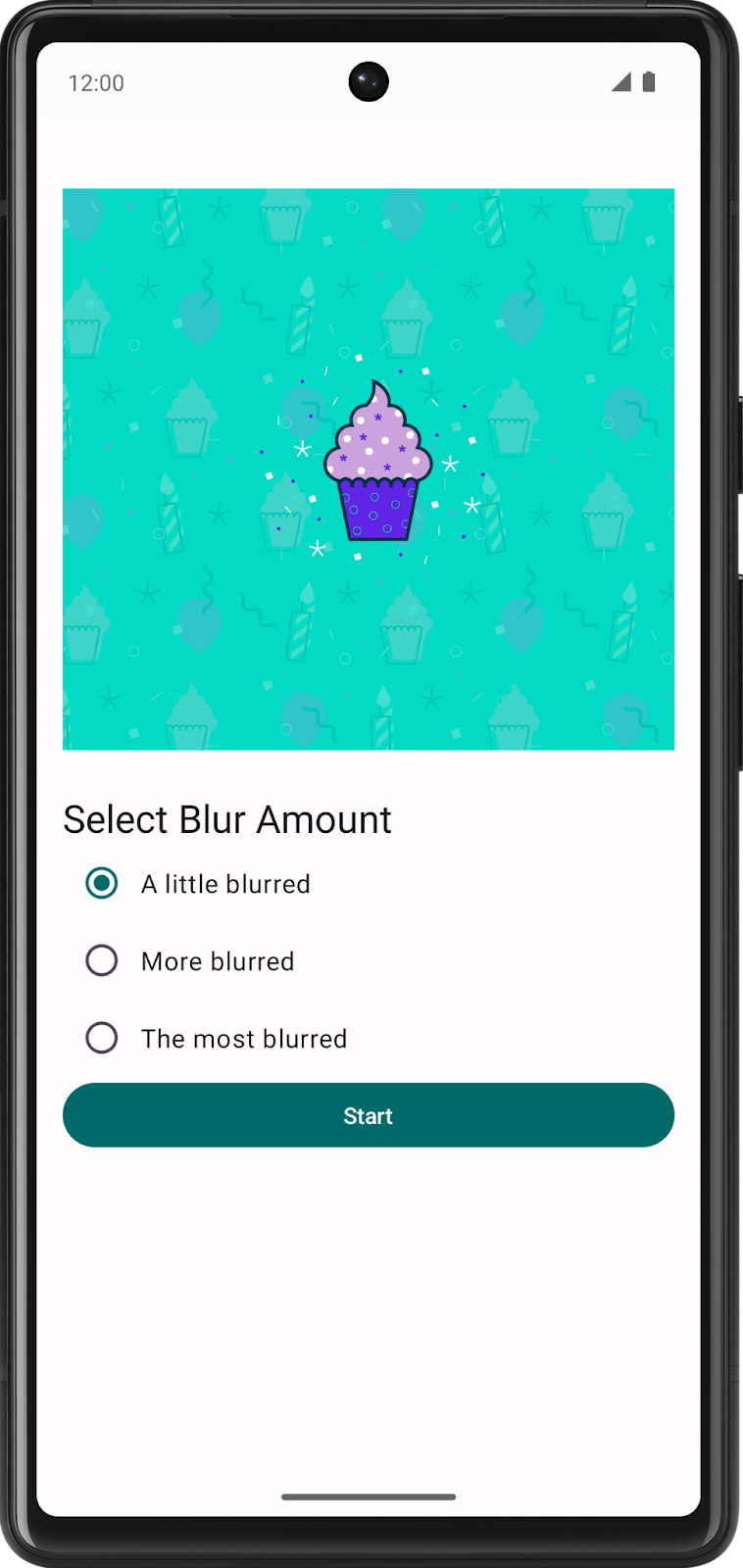

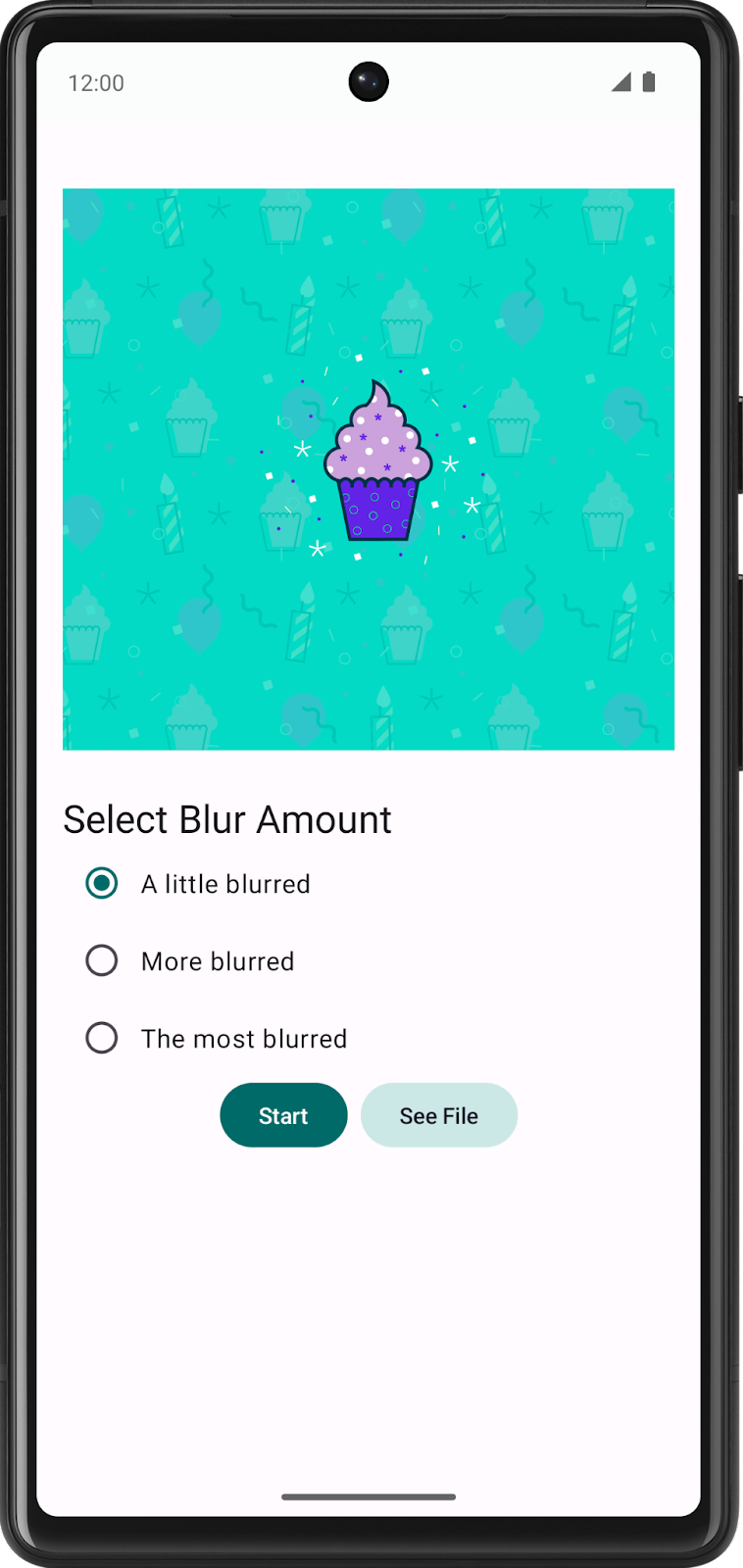

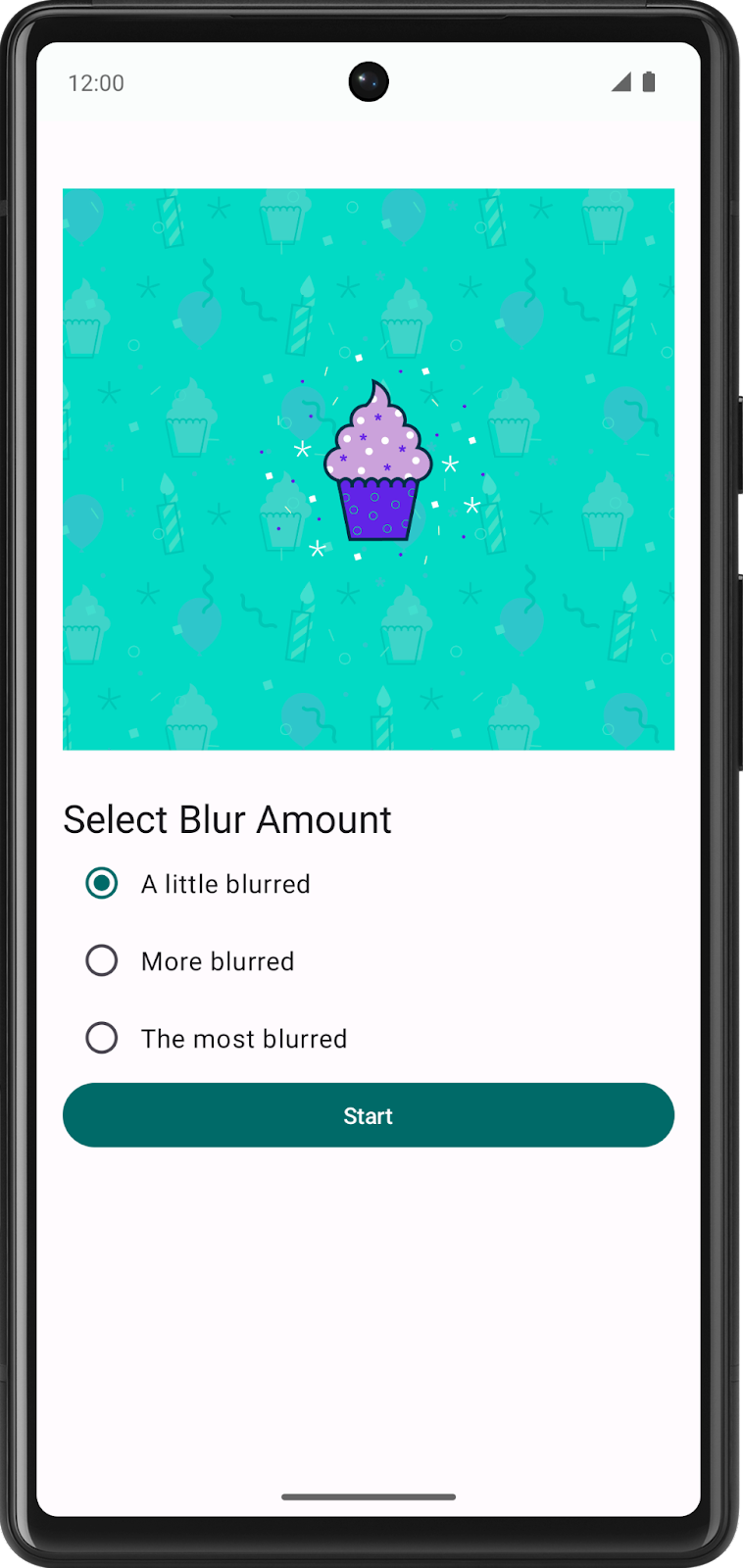

The screen has radio buttons where you can select how blurry you’d like your image to be. Right now, the app does nothing. In the final app, clicking the Start button blurs and saves the image.

Starter code: Blur-O-Matic app¶

https://github.com/google-developer-training/basic-android-kotlin-compose-training-workmanager/tree/starter
Branch: starter

Clone:

$ git clone https://github.com/google-developer-training/basic-android-kotlin-compose-training-workmanager.git
$ cd basic-android-kotlin-compose-training-workmanager
$ git checkout starter

Open the project with the starter code in Android Studio. Run the app on an Android device or an emulator.
Right now, the app does nothing.
The app requires notifications to be enabled. Navigate to Android Settings > Apps > Blur-O-Matic > Notifications and enable All Blur-O-Matic notifications. This is required for the app to display notifications, like:
Here’s a walkthrough of the important files and folders in the project.
- workers/WorkerUtils.kt: convenience methods which you later use to display Notifications and code to save a bitmap to file.
- ui/BlurViewModel.kt: this view model stores the state of the app and interacts with the repository.
- data/WorkManagerBluromaticRepository.kt: contains a class where you start the background work with WorkManager.
- Constants.kt: some constants you use during the codelab.
- ui/BluromaticScreen.kt: contains composable functions for the UI and interacts with the BlurViewModel. The composable functions show the image and include radio buttons to select the desired blur level.

What is WorkManager?¶

WorkManager is part of Android Jetpack and an Architecture Component. It is meant for background work that needs a combination of opportunistic and guaranteed execution. Opportunistic execution means that WorkManager does your background work as soon as it can. Guaranteed execution means that WorkManager takes care of the logic to start your work under a variety of situations, even if you navigate away from your app.
WorkManager is an incredibly flexible library that has many additional benefits. Some of these benefits include:
- Support for both asynchronous one-off and periodic tasks.
- Support for constraints, such as network conditions, storage space, and charging status.
- Chaining of complex work requests, such as running work in parallel.
- Output from one work request used as input for the next.
- Handling API-level compatibility back to API level 14 (see note).
- Working with or without Google Play services.
- Following system health best practices.
- Support to easily display state of work requests in the app’s UI.

Note

WorkManager sits on top of a few APIs, such as JobScheduler and AlarmManager. WorkManager picks the right APIs to use based on conditions like the user’s device API level. To learn more, check out Schedule tasks with WorkManager and the WorkManager documentation.

When to use WorkManager¶

The WorkManager library is a good choice for tasks that you need to complete. The running of these tasks is not dependent on the app continuing to run after the work is enqueued. The tasks run even if the app is closed or the user returns to the home screen.
Some examples of tasks that are a good use of WorkManager:
- Periodically querying for latest news stories.
- Applying filters to an image and then saving the image.
- Periodically syncing local data with the network.
WorkManager is one option for running a task off of the main thread but it is not a catch-all for running every type of task off of the main thread. Coroutines are another option that we used previously.
More deets: Guide to background work.

WorkManager dependency¶

WorkManager requires this dependency, already included in the build file, app/build.gradle.kts:

dependencies {
    // WorkManager dependency
    implementation("androidx.work:work-runtime-ktx:2.8.1")
}

If the above version doesn’t work, try using the latest stable release version of work-runtime-ktx. If you change the version, make sure to click Sync Now to sync your project with the updated gradle files.

WorkManager Basics¶

There are a few WorkManager classes you need to know about:
- Worker / CoroutineWorker: Worker is a class that performs work synchronously on a background thread. As we are interested in asynchronous work, we can use CoroutineWorker, which is interoperable with Kotlin Coroutines. In this app, you extend from the CoroutineWorker class and override the doWork() method. This method is where you put the code for the actual work you want to perform in the background.
- WorkRequest: This class represents a request to do some work. A WorkRequest is where you define if the worker needs to be run once or periodically. Constraints can also be placed on the WorkRequest that require certain conditions are met before the work runs. One example is that the device is charging before starting the requested work. When creating the WorkRequest, the CoroutineWorker is passed in.
- WorkManager: This class schedules the WorkRequest and makes it run. It schedules a WorkRequest in a way that spreads out the load on system resources, while honoring the constraints you specify.
For this app, the BlurWorker class contains the code to blur an image. When the Start button is clicked, WorkManager creates and then enqueues a WorkRequest object.

BlurWorker¶

BlurWorker is a class that extends CoroutineWorker. It contains the code to blur an image. It takes an image (res/drawable/android_cupcake.png, and blurs it in the background.

Create a new file workers/BlurWorker.kt, with this code:

package com.example.bluromatic.workers

import android.content.Context
import android.graphics.BitmapFactory
import android.net.Uri
import android.util.Log
import androidx.work.CoroutineWorker
import androidx.work.WorkerParameters
import androidx.work.workDataOf
import com.example.bluromatic.DELAY_TIME_MILLIS
import com.example.bluromatic.KEY_BLUR_LEVEL
import com.example.bluromatic.KEY_IMAGE_URI
import com.example.bluromatic.R
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.delay
import kotlinx.coroutines.withContext

private const val TAG = "BlurWorker"

class BlurWorker(ctx: Context, params: WorkerParameters) : CoroutineWorker(ctx, params) {

    override suspend fun doWork(): Result {
        val resourceUri = inputData.getString(KEY_IMAGE_URI)
        val blurLevel = inputData.getInt(KEY_BLUR_LEVEL, defaultValue = 1)

        makeStatusNotification(
            applicationContext.resources.getString(R.string.blurring_image),
            applicationContext
        )

        return withContext(Dispatchers.IO) {

            // This is an utility function added to emulate slower work.
            delay(DELAY_TIME_MILLIS)

            return@withContext try {
                require(!resourceUri.isNullOrBlank()) {
                    val errorMessage =
                        applicationContext.resources.getString(R.string.invalid_input_uri)
                    Log.e(TAG, errorMessage)
                    errorMessage
                }
                val resolver = applicationContext.contentResolver

                val picture = BitmapFactory.decodeStream(
                    resolver.openInputStream(Uri.parse(resourceUri))
                )

                val output = blurBitmap(picture, blurLevel)

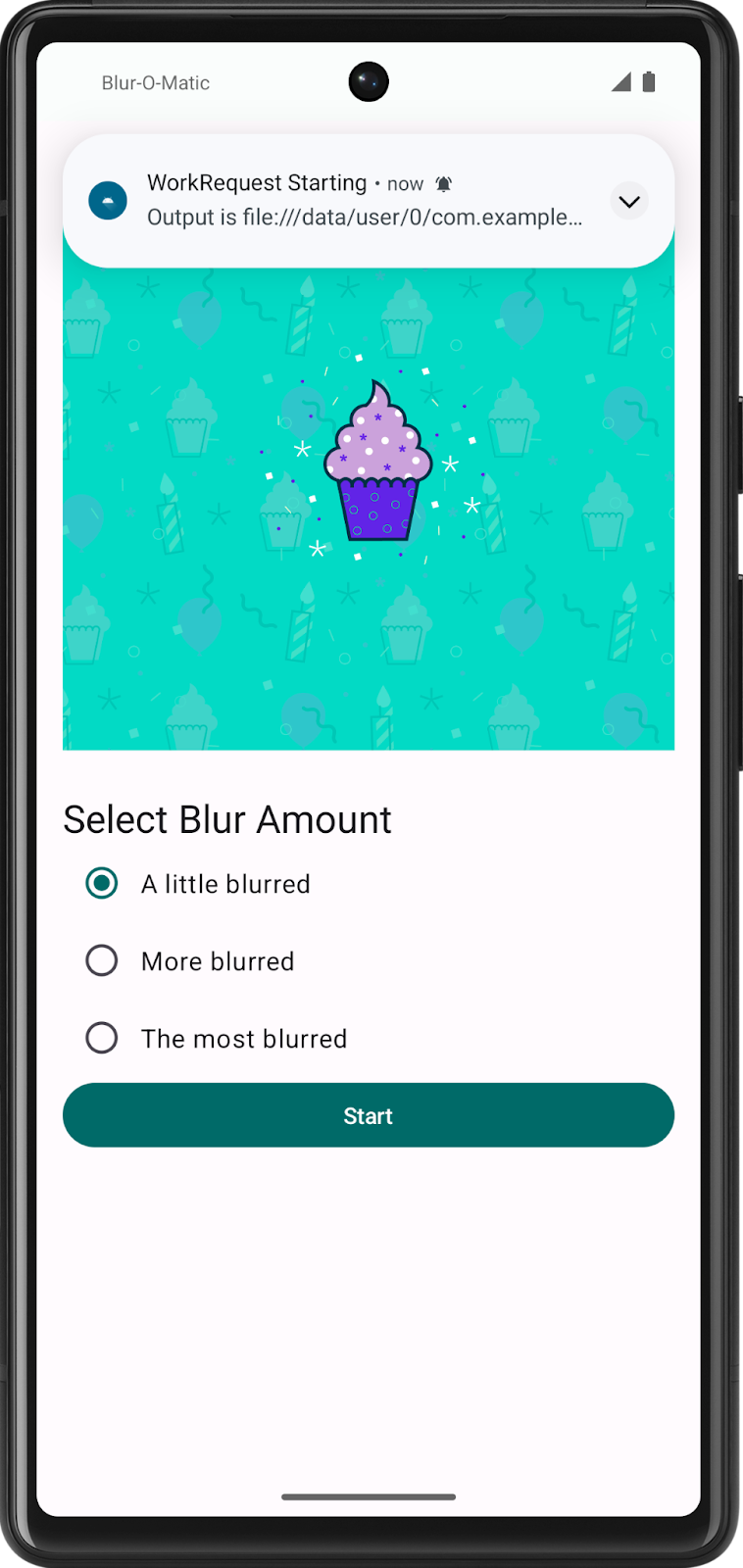

                // Display a notification message to the user that contains the outputUri variable
                makeStatusNotification(
                    "Output is $outputUri",
                    applicationContext
                )

                // Write bitmap to a temp file
                val outputUri = writeBitmapToFile(applicationContext, output)

                val outputData = workDataOf(KEY_IMAGE_URI to outputUri.toString())

                Result.success(outputData)
            } catch (throwable: Throwable) {
                Log.e(
                    TAG,
                    applicationContext.resources.getString(R.string.error_applying_blur),
                    throwable
                )
                Result.failure()
            }
        }
    }
}

The class BlurWorker is extended from CoroutineWorker:

class BlurWorker(ctx: Context, params: WorkerParameters) : CoroutineWorker(ctx, params) {

}

The BlurWorker class extends the CoroutineWorker class instead of the more general Worker class. The CoroutineWorker class implementation of the doWork() is a suspending function, which lets it run asynchronous code that a Worker cannot do. As detailed in the guide Threading in WorkManager, “CoroutineWorker is the recommended implementation for Kotlin users.”

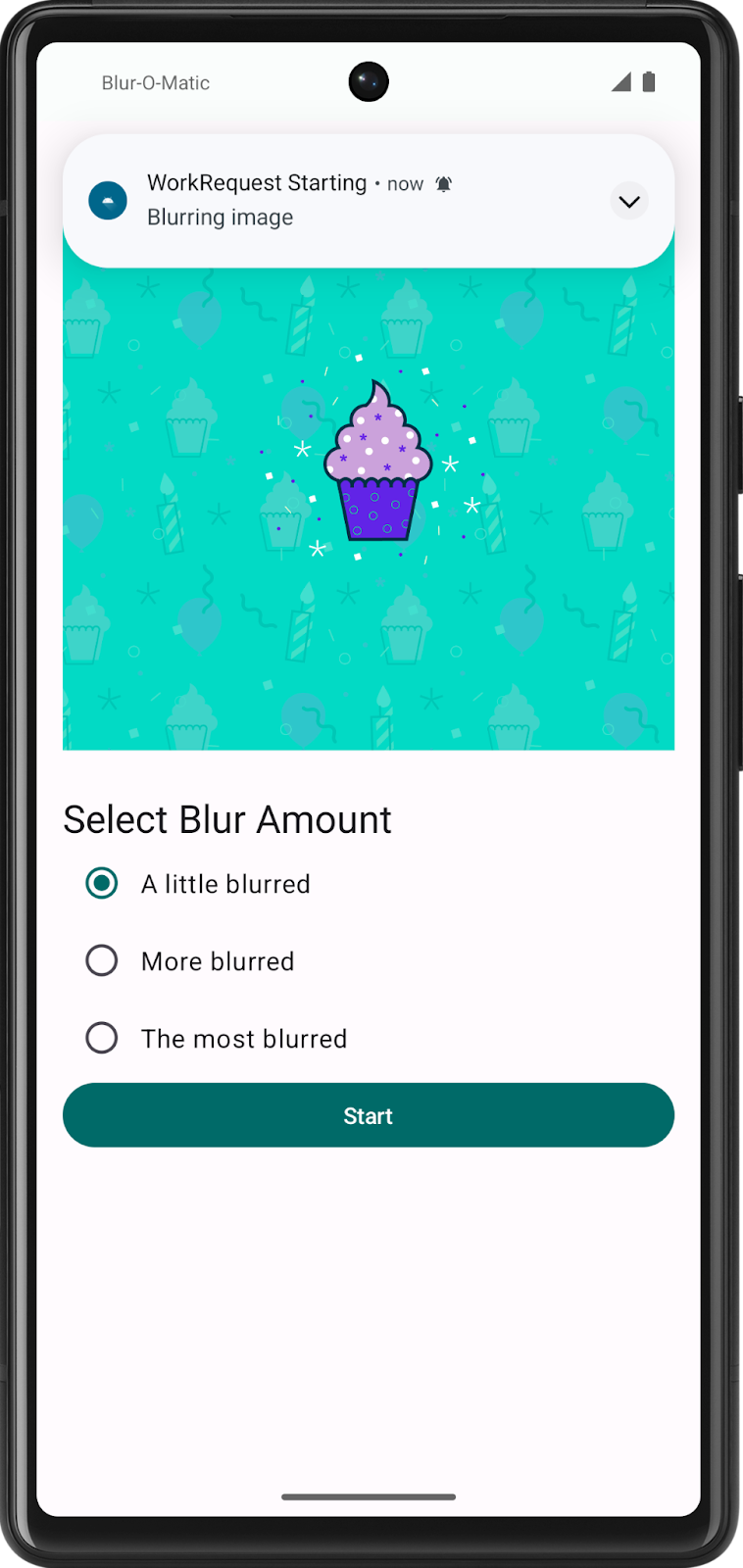

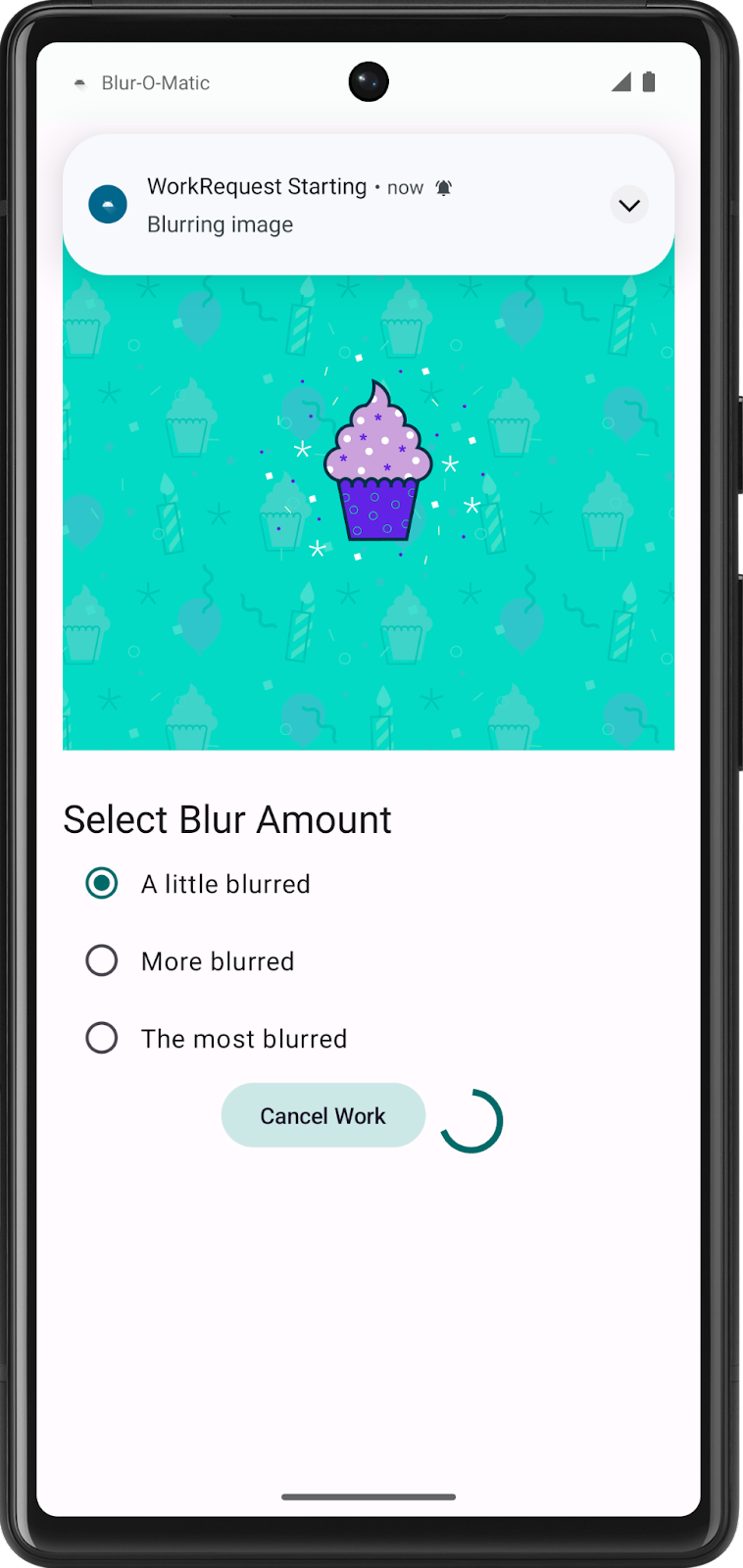

To better see when work executes, the makeStatusNotification() function displays a status notification banner on top of the screen, whenever the blur worker has started and is blurring the image:

override suspend fun doWork(): Result {

    makeStatusNotification(
        applicationContext.resources.getString(R.string.blurring_image),
        applicationContext
    )

The return try...catch code block is where the actual blur image work is performed.
Result.success() and Result.failure() are used to indicate the final status of the work request.

If an error occured, the catch block logs an error message:

} catch (throwable: Throwable) {
    Log.e(
        TAG,
        applicationContext.resources.getString(R.string.error_applying_blur),
        throwable
    )
    Result.failure()
}

Using withContext(Dispatchers.IO) makes the lambda function run in a special thread pool for potentially blocking Input/Output operations:

return withContext(Dispatchers.IO) {

    return@withContext try {
        // ...
    } catch (throwable: Throwable) {
        // ...
    }
}

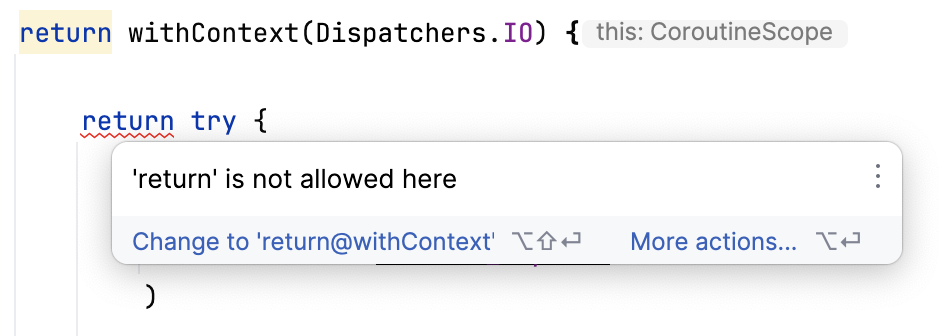

return@withContext try in the above code means that the return “belongs” to withContext, not to doWork(). Without @withContext, this error occurs:
Because this Worker runs very quickly, a delay is added in the code to emulate slower running work, so that we can see the effect of doing work more visibly:
```
// This is an utility function added to emulate slower work.
delay(DELAY_TIME_MILLIS)
```
That’s all we need to know for now, we’ll revisit this file later to explain the rest of the code.

CleanupWorker¶

BlurWorker creates some temporary files. These temporary files need to be cleaned up. That’s CleanupWorker’s job. It deletes the temporary files, if they exist. CleanupWorker will do this work before anything else happens.

Note

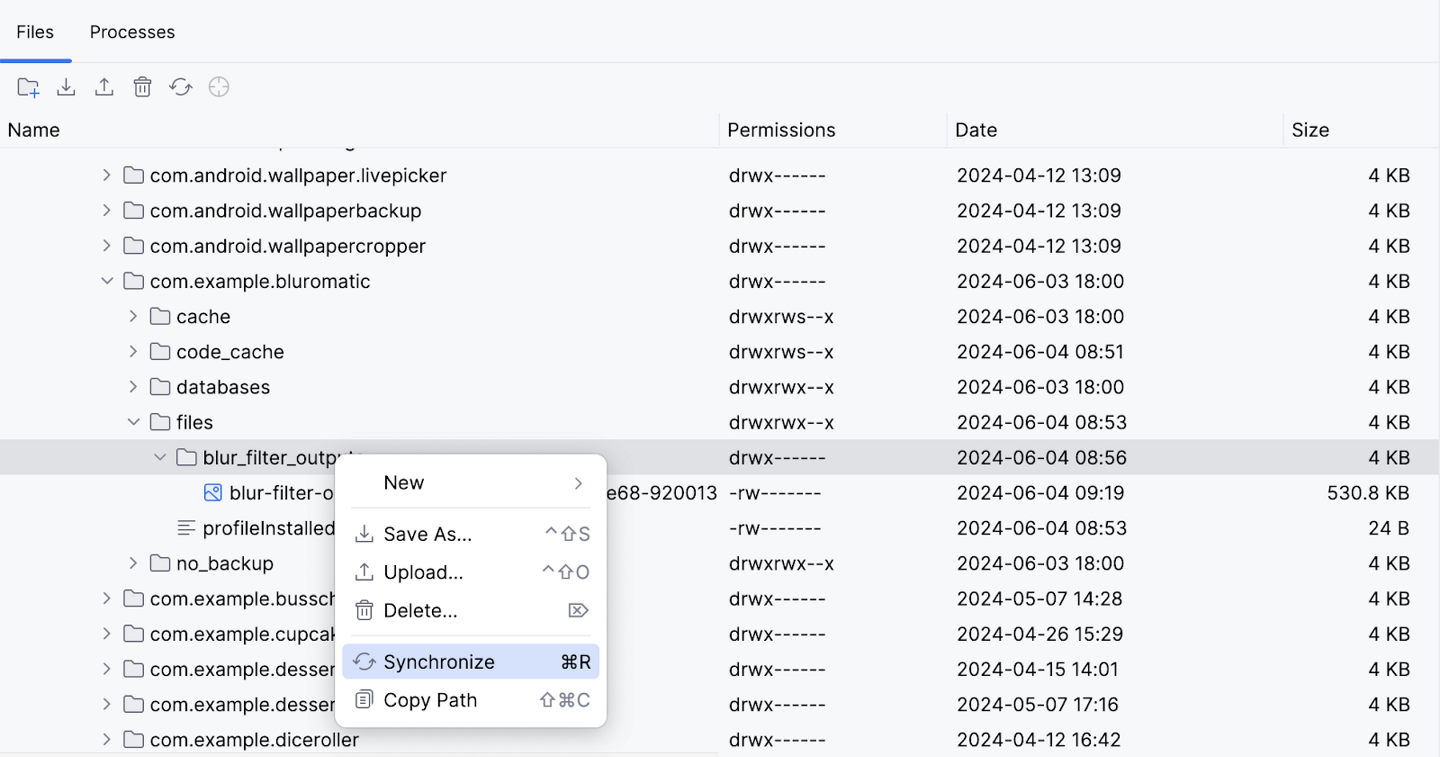

The temporary files are stored in /data/user/0/com.example.bluromatic/files/blur_filter_outputs/

Create a new file, workers/CleanupWorker.kt, with this code. This code is out of scope of this mod, just understand that it helps to clean up the temporary files.

package com.example.bluromatic.workers

import android.content.Context
import android.util.Log
import androidx.work.CoroutineWorker
import androidx.work.WorkerParameters
import com.example.bluromatic.DELAY_TIME_MILLIS
import com.example.bluromatic.OUTPUT_PATH
import com.example.bluromatic.R
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.delay
import kotlinx.coroutines.withContext
import java.io.File

/**
* Cleans up temporary files generated during blurring process
*/
private const val TAG = "CleanupWorker"

class CleanupWorker(ctx: Context, params: WorkerParameters) : CoroutineWorker(ctx, params) {

    override suspend fun doWork(): Result {
        /** Makes a notification when the work starts and slows down the work so that it's easier
        * to see each WorkRequest start, even on emulated devices
        */
        makeStatusNotification(
            applicationContext.resources.getString(R.string.cleaning_up_files),
            applicationContext
        )

        return withContext(Dispatchers.IO) {
            delay(DELAY_TIME_MILLIS)

            return@withContext try {
                val outputDirectory = File(applicationContext.filesDir, OUTPUT_PATH)
                if (outputDirectory.exists()) {
                    val entries = outputDirectory.listFiles()
                    if (entries != null) {
                        for (entry in entries) {
                            val name = entry.name
                            if (name.isNotEmpty() && name.endsWith(".png")) {
                                val deleted = entry.delete()
                                Log.i(TAG, "Deleted $name - $deleted")
                            }
                        }
                    }
                }
                Result.success()
            } catch (exception: Exception) {
                Log.e(
                    TAG,
                    applicationContext.resources.getString(R.string.error_cleaning_file),
                    exception
                )
                Result.failure()
            }
        }
    }
}

SaveImageToFileWorker¶

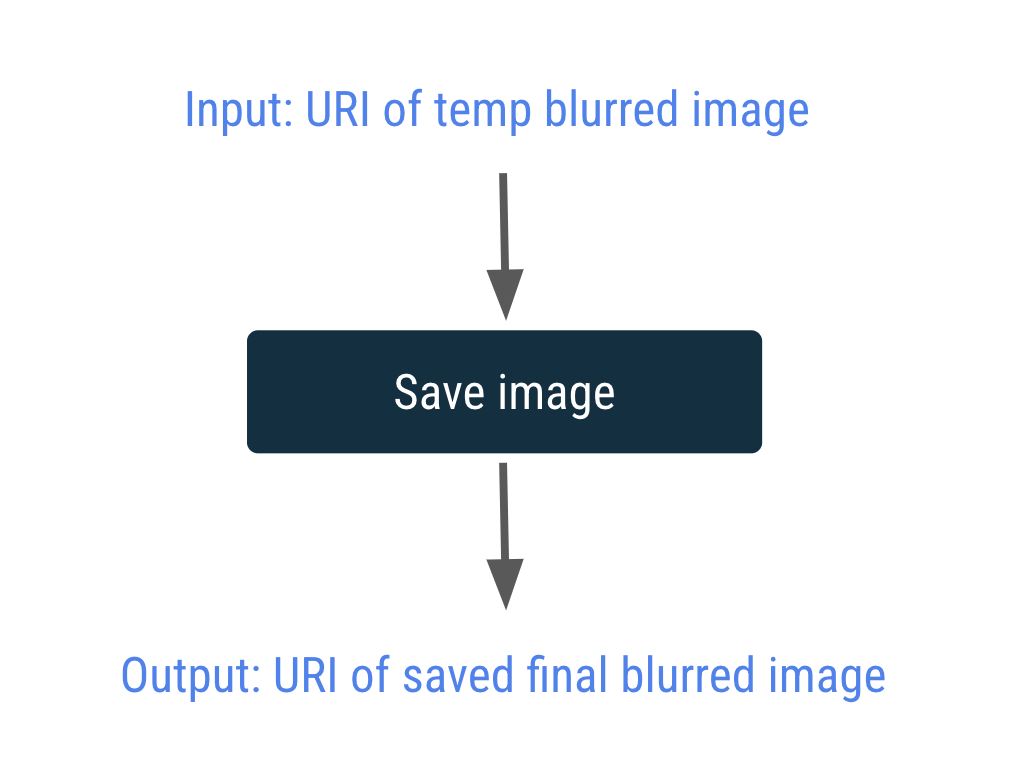

The SaveImageToFileWorker saves the blurred image to an output file.
- Input: the URI of the temporarily blurred image, which is /data/user/0/com.example.bluromatic/files/blur_filter_outputs/blur-filter-output-{sth-sth}.png
- Output: the URI of the saved blurred image, which is /storage/emulated/0/Pictures/Blurred Image.jpg

Create a new file, workers/SaveImageToFileWorker.kt, with this code. This code is out of scope of this mod, just understand that it saves the image to a file on the phone.

package com.example.bluromatic.workers

import android.content.Context
import android.graphics.BitmapFactory
import android.net.Uri
import android.provider.MediaStore
import android.util.Log
import androidx.work.CoroutineWorker
import androidx.work.WorkerParameters
import androidx.work.workDataOf
import com.example.bluromatic.DELAY_TIME_MILLIS
import com.example.bluromatic.KEY_IMAGE_URI
import com.example.bluromatic.R
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.delay
import kotlinx.coroutines.withContext
import java.text.SimpleDateFormat
import java.util.Locale
import java.util.Date

/**
* Saves the image to a permanent file
*/
private const val TAG = "SaveImageToFileWorker"

class SaveImageToFileWorker(ctx: Context, params: WorkerParameters) : CoroutineWorker(ctx, params) {

    private val title = "Blurred Image"
    private val dateFormatter = SimpleDateFormat(
        "yyyy.MM.dd 'at' HH:mm:ss z",
        Locale.getDefault()
    )

    override suspend fun doWork(): Result {
        // Makes a notification when the work starts and slows down the work so that
        // it's easier to see each WorkRequest start, even on emulated devices
        makeStatusNotification(
            applicationContext.resources.getString(R.string.saving_image),
            applicationContext
        )

        return withContext(Dispatchers.IO) {
            delay(DELAY_TIME_MILLIS)

            val resolver = applicationContext.contentResolver
            return@withContext try {
                val resourceUri = inputData.getString(KEY_IMAGE_URI)
                val bitmap = BitmapFactory.decodeStream(
                    resolver.openInputStream(Uri.parse(resourceUri))
                )
                @Suppress("DEPRECATION")
                val imageUrl = MediaStore.Images.Media.insertImage(
                    resolver, bitmap, title, dateFormatter.format(Date())
                )
                if (!imageUrl.isNullOrEmpty()) {
                    val output = workDataOf(KEY_IMAGE_URI to imageUrl)

                    Result.success(output)
                } else {
                    Log.e(
                        TAG,
                        applicationContext.resources.getString(R.string.writing_to_mediaStore_failed)
                    )
                    Result.failure()
                }
            } catch (exception: Exception) {
                Log.e(
                    TAG,
                    applicationContext.resources.getString(R.string.error_saving_image),
                    exception
                )
                Result.failure()
            }
        }
    }
}

Note

The provided code for the CleanupWorker worker and the SaveImageToFileWorker worker each include the statement delay(DELAY_TIME_MILLIS). This code slows the worker down while it is running. This code was included for instructional purposes so you can more easily see the workers running in the Background Task Inspector and to also provide a brief pause between notification messages. You do not normally use this code in production code.

WorkManagerBluromaticRepository¶

The repository handles all interactions with the WorkManager. This structure adheres to the design principle of separation of concerns and is a recommended Android architecture pattern.

In data/WorkManagerBluromaticRepository.kt, replace the contents with this code:

package com.example.bluromatic.data

import android.content.Context
import android.net.Uri
import androidx.work.Data
import androidx.work.OneTimeWorkRequest
import androidx.work.OneTimeWorkRequestBuilder
import androidx.work.WorkInfo
import androidx.work.WorkManager
import com.example.bluromatic.KEY_BLUR_LEVEL
import com.example.bluromatic.KEY_IMAGE_URI
import com.example.bluromatic.getImageUri
import com.example.bluromatic.workers.BlurWorker
import com.example.bluromatic.workers.CleanupWorker
import com.example.bluromatic.workers.SaveImageToFileWorker
import kotlinx.coroutines.flow.Flow
import kotlinx.coroutines.flow.MutableStateFlow

class WorkManagerBluromaticRepository(context: Context) : BluromaticRepository {

    private var imageUri: Uri = context.getImageUri()
    private val workManager = WorkManager.getInstance(context)

    override val outputWorkInfo: Flow<WorkInfo?> = MutableStateFlow(null)

    /**
    * Create the WorkRequests to apply the blur and save the resulting image
    * @param blurLevel The amount to blur the image
    */
    override fun applyBlur(blurLevel: Int) {
        // Add WorkRequest to Cleanup temporary images
        var continuation = workManager.beginWith(OneTimeWorkRequest.from(CleanupWorker::class.java))

        // Add WorkRequest to blur the image
        val blurBuilder = OneTimeWorkRequestBuilder<BlurWorker>()

        // Input the Uri for the blur operation along with the blur level
        blurBuilder.setInputData(createInputDataForWorkRequest(blurLevel, imageUri))

        continuation = continuation.then(blurBuilder.build())

        // Add WorkRequest to save the image to the filesystem
        val save = OneTimeWorkRequestBuilder<SaveImageToFileWorker>()
            .build()
        continuation = continuation.then(save)

        // Actually start the work
        continuation.enqueue()
    }

    /**!
    * Cancel any ongoing WorkRequests
    * */
    override fun cancelWork() {}

    /**
    * Creates the input data bundle which includes the blur level to
    * update the amount of blur to be applied and the Uri to operate on
    * @return Data which contains the Image Uri as a String and blur level as an Integer
    */
    private fun createInputDataForWorkRequest(blurLevel: Int, imageUri: Uri): Data {
        val builder = Data.Builder()
        builder.putString(KEY_IMAGE_URI, imageUri.toString()).putInt(KEY_BLUR_LEVEL, blurLevel)
        return builder.build()
    }
}

This code gets the URI for the cupcake image. The URI is hard-coded inside BlurActivity.kt: Context.getImageUri(). The URI is android.resource://com.example.bluromatic/drawable/android_cupcake.
```
private var imageUri: Uri = context.getImageUri()
```

This code gets a WorkManager instance:

private val workManager = WorkManager.getInstance(context)

We’ll make some WorkRequests and tell WorkManager to run them. There are two types of WorkRequests:
- OneTimeWorkRequest: A WorkRequest that only executes once.
- PeriodicWorkRequest: A WorkRequest that executes repeatedly on a cycle.
We use a WorkManager chain of work to chain multiple workers together. WorkManager lets us create separate WorkerRequest that run sequentially, or in parallel.

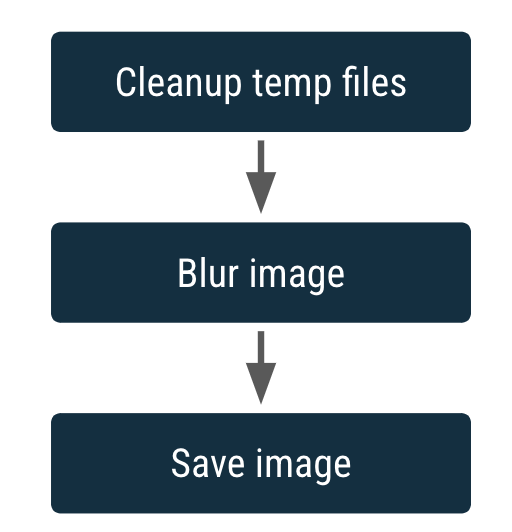

In applyBlur(), the chain of work looks like the following. A box represents a WorkRequest.
Another feature of chaining is its ability to accept input and produce output. The output of one WorkRequest becomes the input of the next WorkRequest in the chain.
In applyBlur() the first work request in the chain is to clean up the temporary files:
```
var continuation = workManager.beginWith(OneTimeWorkRequest.from(CleanupWorker::class.java))
```
Note

These 2 are equivalent:
- OneTimeWorkRequest.from(CleanupWorker::class.java)
- OneTimeWorkRequestBuilder<CleanupWorker>().build()
Class OneTimeWorkRequest comes from the AndroidX Work library while OneTimeWorkRequestBuilder is a helper function provided by the WorkManager KTX extension. Either of them can be used to create OneTimeWorkRequests.
Calling beginWith() returns a WorkContinuation object, and creates the starting point for a chain of WorkRequests.

The next work in the chain is to blur the image:

// Add WorkRequest to blur the image
val blurBuilder = OneTimeWorkRequestBuilder<BlurWorker>()

// Input the Uri for the blur operation along with the blur level
blurBuilder.setInputData(createInputDataForWorkRequest(blurLevel, imageUri))

continuation = continuation.then(blurBuilder.build())

continuation.then(blurBuilder.build()) adds the blurBuilder work request to the chain.

Finally, this is the last work request in the chain:

// Add WorkRequest to save the image to the filesystem
val save = OneTimeWorkRequestBuilder<SaveImageToFileWorker>()
    .build()
continuation = continuation.then(save)

To start the work, call continuation.enqueue():
```
continuation.enqueue()
```
This results in:
- a CleanupWorker WorkRequest, followed by
- a BlurWorker WorkRequest, followed by
- a SaveImageToFileWorker WorkRequest

Input data and output data¶

Input and output are passed in and out of a worker via Data objects. Data objects are lightweight containers for key/value pairs. They are meant to store a small amount of data that might pass into and out of a worker from the WorkRequest.

In class WorkManagerBluromaticRepository, this function creates a Data object:

// For reference - already exists in the app
private fun createInputDataForWorkRequest(blurLevel: Int, imageUri: Uri): Data {
    val builder = Data.Builder()
    builder.putString(KEY_IMAGE_URI, imageUri.toString()).putInt(BLUR_LEVEL, blurLevel)
    return builder.build()
}

The returned Data object contains 2 key-value pairs:
- KEY_IMAGE_URI ➜ imageUri.toString()
- BLUR_LEVEL ➜ blurLevel

To set the input data object for the WorkRequest:

// Input the Uri for the blur operation along with the blur level
blurBuilder.setInputData(createInputDataForWorkRequest(blurLevel, imageUri))

In BlurWorker.kt, the doWork() method gets the key-value pairs from the input data object. For the blur level, if there was no key found, it defaults to 1.
```
val resourceUri = inputData.getString(KEY_IMAGE_URI)
val blurLevel = inputData.getInt(KEY_BLUR_LEVEL, defaultValue = 1)
```

The resourceUri variable must be populated. If it isn’t, throw an exception. That’s handled by this require():

return@withContext try {
    require(!resourceUri.isNullOrBlank()) {
        val errorMessage =
            applicationContext.resources.getString(R.string.invalid_input_uri)
            Log.e(TAG, errorMessage)
            errorMessage
    }

Since the image source is passed in as a URI, we need a ContentResolver object to read the contents pointed to by the URI. Analogy: a URL like https://issa.me/pic.jpg points to an image file (the content).
```
val resolver = applicationContext.contentResolver
```

BitmapFactory.decodeStream() is used to create the Bitmap object:

val picture = BitmapFactory.decodeStream(
    resolver.openInputStream(Uri.parse(resourceUri))
)

BlurWorker returns an output URI as an output data object in Result.success(), so that other workers can use it.
```
val outputData = workDataOf(KEY_IMAGE_URI to outputUri.toString())

Result.success(outputData)
```
workDataOf() converts a list of pairs to a Data object.

Run the app¶

Run the app.
You are now able to click Start and see notifications when the different workers execute. For now, the blurred image doesn’t display on the screen, but it’s there in the Device Explorer, at /storage/emulated/0/Pictures/Blurred Image.jpg.

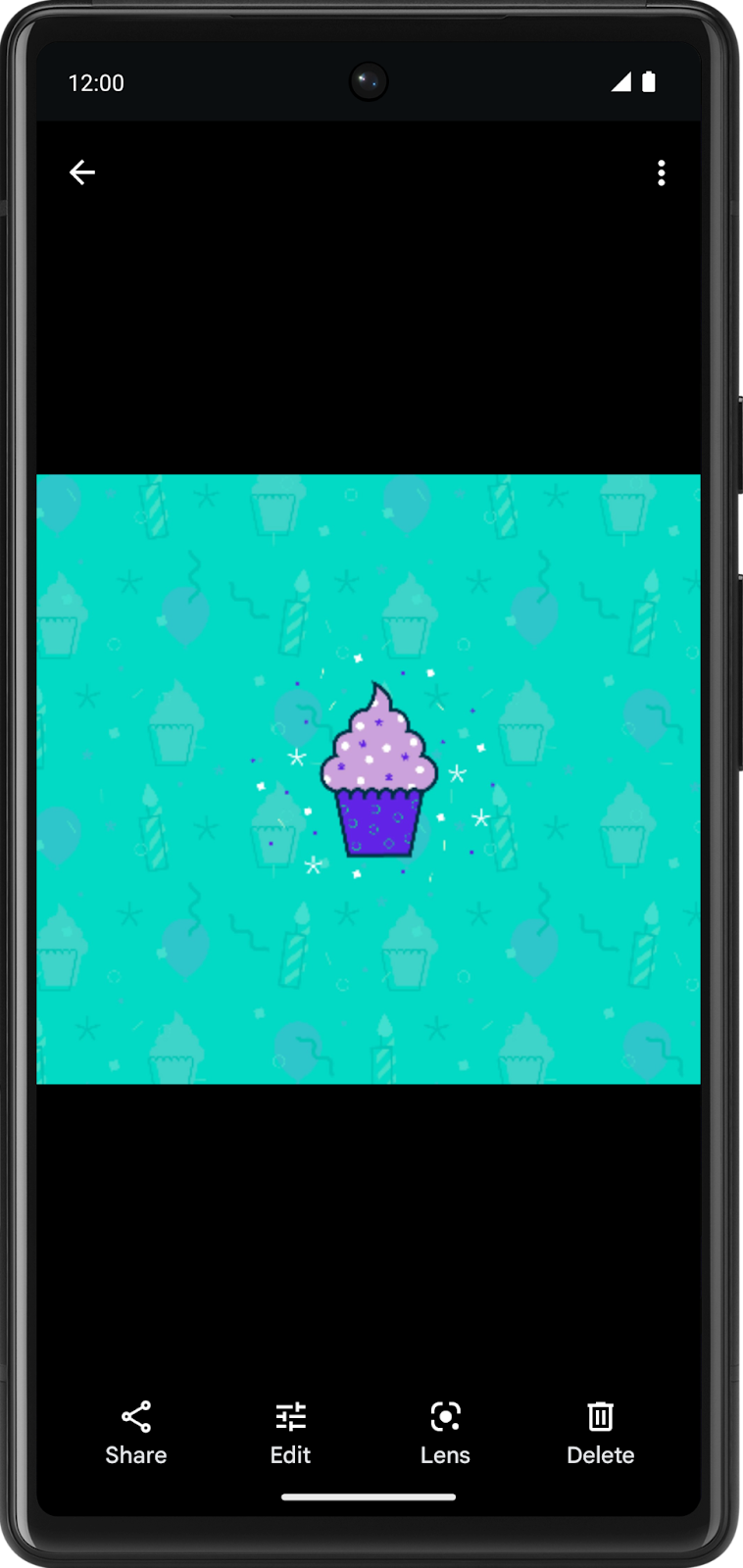

You might need to Synchronize to see your images:
The notification messages display which worker is currently running.

Note

In case you observe a LogCat error message Writing to MediaStore failed, or there was some error related to saving the image to a file:

Clear the app’s cache and storage
Wipe the emulator data (make sure it’s the emulator, not a real device)

Solution code¶

https://github.com/google-developer-training/basic-android-kotlin-compose-training-workmanager/tree/intermediate
Branch: intermediate

Clone:

$ git clone https://github.com/google-developer-training/basic-android-kotlin-compose-training-workmanager.git
$ cd basic-android-kotlin-compose-training-workmanager
$ git checkout intermediate

Blur-o-matic app v2¶

Starter code: Blur-o-matic app v2¶

https://github.com/google-developer-training/basic-android-kotlin-compose-training-workmanager/tree/intermediate

Branch: intermediate

$ git clone https://github.com/google-developer-training/basic-android-kotlin-compose-training-workmanager.git
$ cd basic-android-kotlin-compose-training-workmanager
$ git checkout intermediate

Ensure unique work¶

Now that you know how to chain workers, it’s time to tackle another powerful feature of WorkManager: unique work sequences.
Sometimes, you only want one chain of work to run at a time. For example, perhaps you have a work chain that syncs your local data with the server. You probably want the first data sync to complete before starting a new one. To do this, you use beginUniqueWork() instead of beginWith(), and you provide a unique String name. This input names the entire chain of work requests so that you can refer to and query them together.
You also need to pass in an ExistingWorkPolicy object. This object tells the Android OS what happens if the work already exists. Possible ExistingWorkPolicy values are REPLACE, KEEP, APPEND, or APPEND_OR_REPLACE.
In this app, you want to use REPLACE, because if a user decides to blur another image before the current one finishes, you want to stop the current one and start blurring the new image. If a user clicks Start when a work request is already enqueued, then the app replaces the previous work request with the new request. It does not make sense to continue working on the previous request because the new request will override the previous one anyway.

In data/WorkManagerBluromaticRepository.kt, inside the applyBlur() method, replace the call to beginWith() with this code:

// REPLACE THIS CODE:
// var continuation = workManager.beginWith(OneTimeWorkRequest.from(CleanupWorker::class.java))
// WITH
var continuation = workManager
    .beginUniqueWork(
        IMAGE_MANIPULATION_WORK_NAME,
        ExistingWorkPolicy.REPLACE,
        OneTimeWorkRequest.from(CleanupWorker::class.java)
    )

imports

import androidx.work.ExistingWorkPolicy
import com.example.bluromatic.IMAGE_MANIPULATION_WORK_NAME

Blur-O-Matic now only blurs one image at a time.

Tag and update the UI based on Work status¶

Note

If the app goes into an invalid state (e.g. shows “Cancel Work” upon start up), it might help to:

Clear the app’s cache and storage
Wipe the emulator data (make sure it’s the emulator, not a real device)

Next, change what the app displays when the Work executes. Get information about the enqueued work to determine what the UI displays.

There are 3 different methods to get work information:

Type	WorkManager Method	Description
Get work using id	`getWorkInfoByIdLiveData()`	This function returns a single `LiveData<WorkInfo>` for a specific `WorkRequest` by its ID.
Get work using unique chain name	`getWorkInfosForUniqueWorkLiveData()`	This function returns `LiveData<List<WorkInfo>>` for all work in a unique chain of `WorkRequest`s.
Get work using a tag	`getWorkInfosByTagLiveData()`	This function returns the `LiveData<List<WorkInfo>>` for a tag.

Note

WorkManager exposes some APIs as LiveData. We use the LiveData APIs but convert and use them as a flow.

A WorkInfo object contains details about the current state of a WorkRequest, including:
- whether the work is BLOCKED, CANCELLED, ENQUEUED, FAILED, RUNNING, or SUCCEEDED.
- if the WorkRequest is finished.
- any output data from the work.
These methods return LiveData. LiveData is a lifecycle-aware observable data holder. We convert it into a Flow of WorkInfo objects by calling .asFlow().
Because you are interested in when the final image saves, you add a tag to the SaveImageToFileWorker WorkRequest so that you can get its WorkInfo from the getWorkInfosByTagLiveData() method.
Another option is to use the getWorkInfosForUniqueWorkLiveData() method, which returns information about all three WorkRequests (CleanupWorker, BlurWorker, and SaveImageToFileWorker). The downside to this method is that you need additional code to specifically find the necessary SaveImageToFileWorker information.

Tag the work request¶

Tagging the work is done in applyBlur():

val save = OneTimeWorkRequestBuilder<SaveImageToFileWorker>()
    .addTag(TAG_OUTPUT) // <--- Add this
    .build()

imports

import com.example.bluromatic.TAG_OUTPUT

Get the WorkInfo¶

Use the WorkInfo information, from the SaveImageToFileWorker work request, to decide which composables to display in the UI based on the BlurUiState.
The ViewModel consumes this information from the repository’s outputWorkInfo variable.

The SaveImageToFileWorker work request has been tagged. To retrieve its information, in data/WorkManagerBluromaticRepository.kt, add this code:

override val outputWorkInfo: Flow<WorkInfo> =
    workManager.getWorkInfosByTagLiveData(TAG_OUTPUT).asFlow().mapNotNull {
        if (it.isNotEmpty()) it.first() else null
    }

getWorkInfosByTagLiveData() returns LiveData<List<WorkInfo>>. The .asFlow() function converts it to a Flow<List<WorkInfo>>.
.mapNotNull() ensures that the Flow contains values. How? The lambda checks if the Flow is empty. If yes, then it returns null, and mapNotNull() removes it. This guarantees that a value exists.

In data/BluromaticRepository.kt, make this change since a value is guaranteed to exist:

interface BluromaticRepository {
//    val outputWorkInfo: Flow<WorkInfo?> // <--- delete
    val outputWorkInfo: Flow<WorkInfo>    // <--- add

The WorkInfo information is emitted as a Flow from the repository. The ViewModel then consumes it.

Update the BlurUiState¶

The ViewModel uses the WorkInfo emitted by the repository from the outputWorkInfo Flow to set the value of the blurUiState variable.
The UI code uses the blurUiState variable to determine which composables to display.

In ui/BlurViewModel.kt, change this code:

// REMOVE
// val blurUiState: StateFlow<BlurUiState> = MutableStateFlow(BlurUiState.Default)

// ADD
val blurUiState: StateFlow<BlurUiState> = bluromaticRepository.outputWorkInfo
    .map { info ->
        val outputImageUri = info.outputData.getString(KEY_IMAGE_URI)
        when {
            info.state.isFinished && !outputImageUri.isNullOrEmpty() -> {
                BlurUiState.Complete(outputUri = outputImageUri)
            }
            info.state == WorkInfo.State.CANCELLED -> {
                BlurUiState.Default
            }
            else -> BlurUiState.Loading
        }
    }.stateIn(
        scope = viewModelScope,
        started = SharingStarted.WhileSubscribed(5_000),
        initialValue = BlurUiState.Default
    )

imports

import androidx.work.WorkInfo
import kotlinx.coroutines.flow.map
import kotlinx.coroutines.flow.stateIn
import androidx.lifecycle.viewModelScope
import kotlinx.coroutines.flow.SharingStarted

outputImageUri = info.outputData.getString(KEY_IMAGE_URI) checks whether the worker has finished. If outputImageUri is populated, it indicates that a blurred image exists to display.
The .map {} maps values in the Flow to the BlurUiState states, depending on the status of the work.
- When the work is finished, set the blurUiState variable to BlurUiState.Complete(outputUri = outputImageUri).
- When the work is cancelled, set the blurUiState variable to BlurUiState.Default.
- Otherwise, set the blurUiState variable to BlurUiState.Loading.
The stateIn() converts the Flow to a StateFlow. It has 3 parameters:
- scope = viewModelScope: the coroutine scope tied to the ViewModel.
- started = SharingStarted.WhileSubscribed(5_000): controls when sharing starts and stops.
- initialValue = BlurUiState.Default: initial value of the state flow.
Summary of this code:
- The ViewModel gets WorkInfo information from the SaveImageToFileWorker work request, to decide the UI state.
- The ViewModel exposes the UI state information as a StateFlow through the blurUiState variable. stateIn() converts the cold Flow to a hot StateFlow.
Note
- “cold” means the flow doesn’t emit values until someone collects them
- “hot” means the flow emits values regardless of whether someone collects them or not

Update the UI¶

Recap:
- The work request has been tagged
- The ViewModel can get work information from the work request, and update the UI state
Next, the UI has to get the latest UI state, and update the UI elements.

In ui/BluromaticScreen.kt, remove the Button(), and add this code:

Row(
    modifier = modifier,
    horizontalArrangement = Arrangement.Center
) {
    // REMOVE
    // Button(
    //     onClick = onStartClick,
    //     modifier = Modifier.fillMaxWidth()
    // ) {
    //     Text(stringResource(R.string.start))
    // }

    // ADD
    when (blurUiState) {
        is BlurUiState.Default -> {
            Button(onStartClick) { Text(stringResource(R.string.start)) }
        }
        is BlurUiState.Loading -> {
            FilledTonalButton(onCancelClick) { Text(stringResource(R.string.cancel_work)) }
            CircularProgressIndicator(modifier = Modifier.padding(dimensionResource(R.dimen.padding_small)))
        }
        is BlurUiState.Complete -> {
            Button(onStartClick) { Text(stringResource(R.string.start)) }
            Spacer(modifier = Modifier.width(dimensionResource(R.dimen.padding_small)))
            FilledTonalButton({ onSeeFileClick(blurUiState.outputUri) })
            { Text(stringResource(R.string.see_file)) }
        }
    }
}

imports

import androidx.compose.material3.CircularProgressIndicator
import androidx.compose.material3.FilledTonalButton

A when block controls the app’s UI. It has a branch for each of the three BlurUiState states:
- When the app first opens, BlurUiState == BlurUiState.Default. The app shows the Start button.
- When the app is actively blurring an image, BlurUiState == BlurUiState.Loading. For this state, the app shows the Cancel Work button, and a circular progress indicator.
- When the app has just saved an image, BlurUiState == BlurUiState.Complete. The app displays the Start and See File buttons.
In BluromaticScreenContent(), add this handler for onSeeFileClick. The purpose of this function is to display the saved image from its URI. It calls the showBlurredImage() helper function and passes in the URI. The helper function creates an intent and uses it to start a new activity to show the saved image.
```
BlurActions(
    blurUiState = blurUiState,
    onStartClick = { applyBlur(selectedValue) },
    onSeeFileClick = { currentUri -> showBlurredImage(context, currentUri) },
    onCancelClick = { cancelWork() },
    modifier = Modifier.fillMaxWidth()
)
```

Run the app again¶

Run the app and click Start.
To see how the various states correspond to the UI being displayed, View > Tool Windows > App Inspection > Select the Background Task Inspector tab.
Note

In case some Workers have a Failed status:
- Clear the app’s cache and storage
- Wipe the emulator data (make sure it’s the emulator, not a real device)
The SystemJobService is the component responsible for managing Worker executions.
While the workers are running, the UI shows the Cancel Work button and a circular progress indicator. Clicking on Cancel Work does nothing for now.
After the workers finish, the UI updates to show the Start and See File buttons:

Cancel work¶

Previously, you added the Cancel Work button, so now you can add the code to make it do something. With WorkManager, you can cancel work using the id, tag, and unique chain name.
In this case, you want to cancel work with its unique chain name because you want to cancel all work in the chain, not just a particular step.

Cancel the work by name¶

In data/WorkManagerBluromaticRepository.kt, modify the cancelWork() function:

override fun cancelWork() {
    workManager.cancelUniqueWork(IMAGE_MANIPULATION_WORK_NAME)
}

This will cancel only scheduled work with the unique chain name IMAGE_MANIPULATION_WORK_NAME
Following the design principle of separation of concerns, the composable functions must not directly interact with the repository. The composable functions interact with the ViewModel, and the ViewModel interacts with the repository. This is a good design principle to follow because changes to the repository do not require changes to the composable functions, as they do not directly interact.

In ui/BlurViewModel.kt, create a new function called cancelWork():

/**
* Call method from repository to cancel any ongoing WorkRequest
* */
fun cancelWork() {
    bluromaticRepository.cancelWork()
}

In ui/BluromaticScreen.kt: BluromaticScreen(), set the cancelWork parameter:

BluromaticScreenContent(
    blurUiState = uiState,
    blurAmountOptions = blurViewModel.blurAmount,
    applyBlur = blurViewModel::applyBlur,
    cancelWork = blurViewModel::cancelWork,
    modifier = Modifier
        .verticalScroll(rememberScrollState())
        .padding(dimensionResource(R.dimen.padding_medium))
)

Run the app and cancel work¶

Run the app. Start blurring a picture and then click Cancel Work. The whole chain is cancelled!
After you cancel work, only the Start button shows because WorkInfo.State is CANCELLED. This change causes the blurUiState variable to be set to BlurUiState.Default, which resets the UI back to its initial state and shows just the Start button.

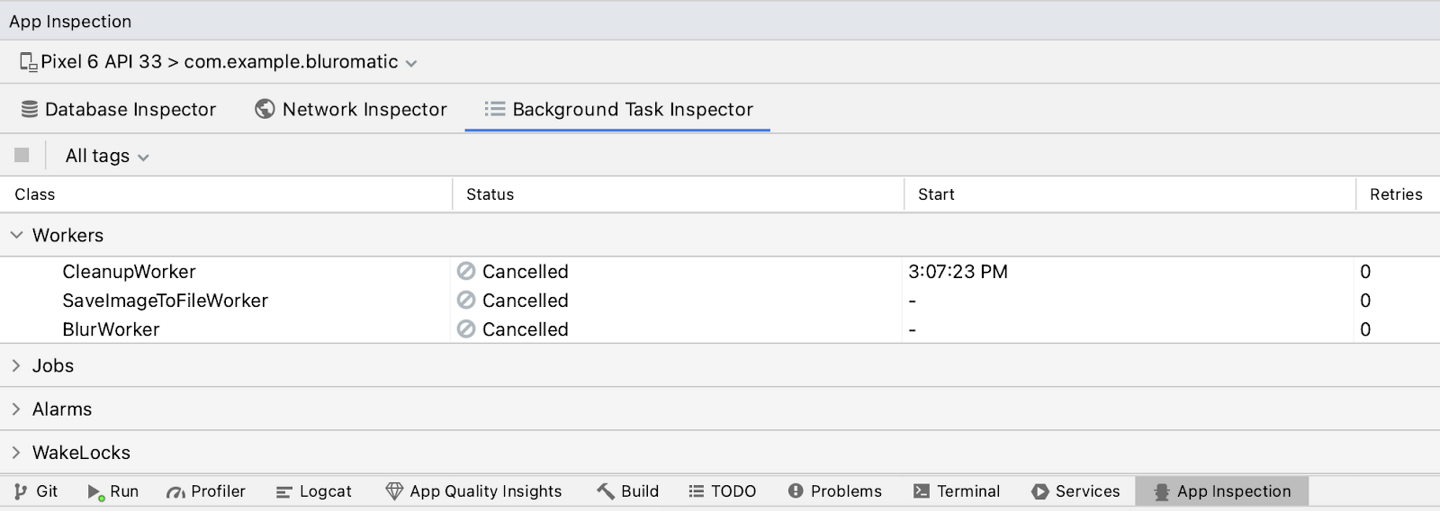

The Background Task Inspector shows the status of Cancelled which is expected.

Work constraints¶

Last but not least, WorkManager supports Constraints. A constraint is a requirement that you must meet before a WorkRequest runs.
Some example constraints are requiresDeviceIdle() and requiresStorageNotLow().
- If requiresDeviceIdle() is passed a value of true, the work runs only if the device is idle.
- If requiresStorageNotLow() is passed a value of true, the work runs only if the storage is not low.
Blur-O-Matic adds a constraint that the device’s battery charge level must not be low before it runs the blurWorker work request. This constraint means that the work request is deferred and only runs once the device’s battery is not low.

Create the battery not low constraint¶

In data/WorkManagerBluromaticRepository.kt file, navigate to the applyBlur() method.

After the code declaring the continuation variable, insert this code:

// ...
    override fun applyBlur(blurLevel: Int) {
        // ...

        val constraints = Constraints.Builder()
            .setRequiresBatteryNotLow(true)
            .build()
// ...

To add the constraint object to the blurBuilder work request, chain a call to the .setConstraints() method and pass in the constraint object.

// ...
blurBuilder.setInputData(createInputDataForWorkRequest(blurLevel, imageUri))

blurBuilder.setConstraints(constraints) // Add this code
//...

Test with emulator¶

On an emulator, change the Charge level in the Extended Controls window to be 15% or lower to simulate a low battery scenario, Charger connection to AC charger, and Battery status to Not charging.
Run the app and click Start to start blurring the image.

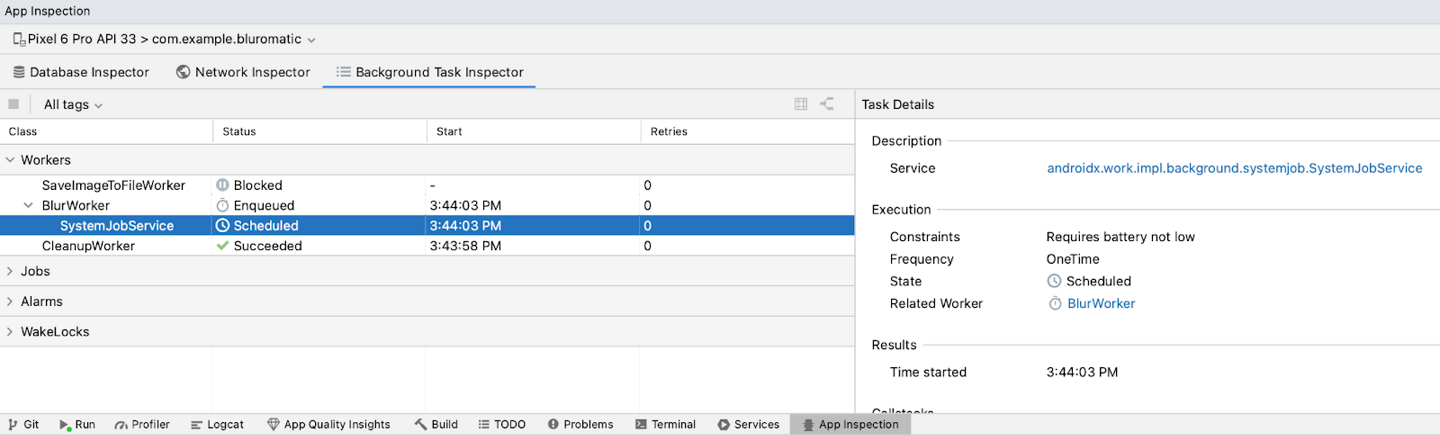

The emulator’s battery charge level is set to low, so WorkManager does not run the blurWorker work request because of the constraint. It is enqueued but deferred until the constraint is met. You can see this deferral in the Background Task Inspector tab.
After you confirm it did not run, slowly increase the battery charge level.

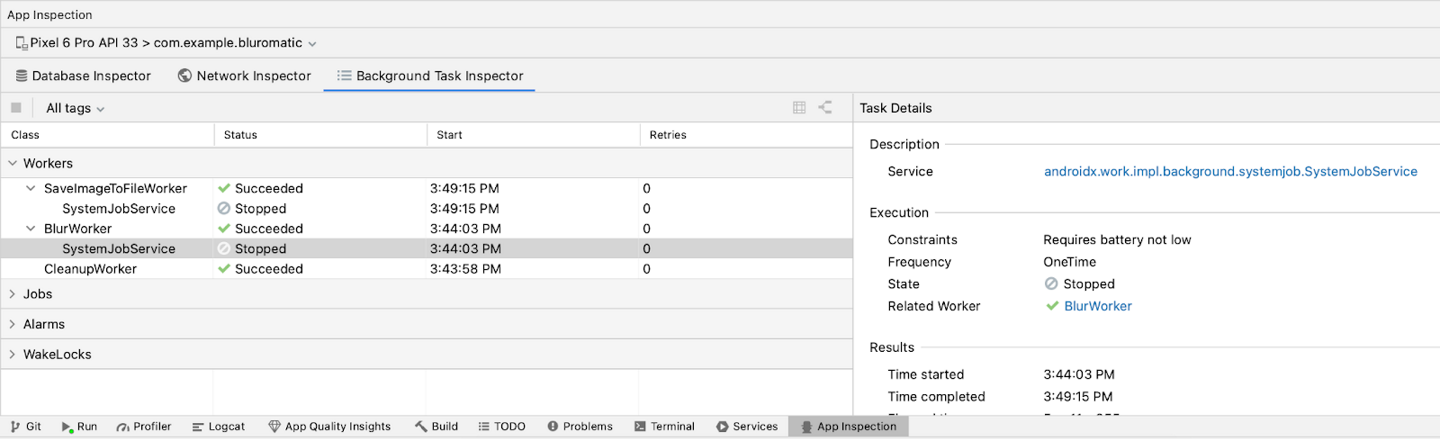

The constraint is met after the battery charge level reaches approximately 25%, and the deferred work runs. This outcome appears in the Background Task Inspector tab.

Note

Another good constraint to add to Blur-O-Matic is a setRequiresStorageNotLow() constraint when saving. To see a full list of constraint options, check out the Constraints.Builder reference.

Solution code: Blur-o-matic app v2¶

https://github.com/google-developer-training/basic-android-kotlin-compose-training-workmanager/tree/main
Branch: main

Clone:

$ git clone https://github.com/google-developer-training/basic-android-kotlin-compose-training-workmanager.git
$ cd basic-android-kotlin-compose-training-workmanager
$ git checkout main

In-lesson Practice: Water Me app¶

You’ve learnt about WorkManager, which is a Jetpack library for deferrable background work. This background work is guaranteed to run even if you close its source app.
While learning about WorkManager, you learned how to define work in a Worker class, how to create a WorkRequest for the Worker, and how to enqueue and schedule work.
In this practice set, you take the concepts you learned and enhance the Water Me! app.

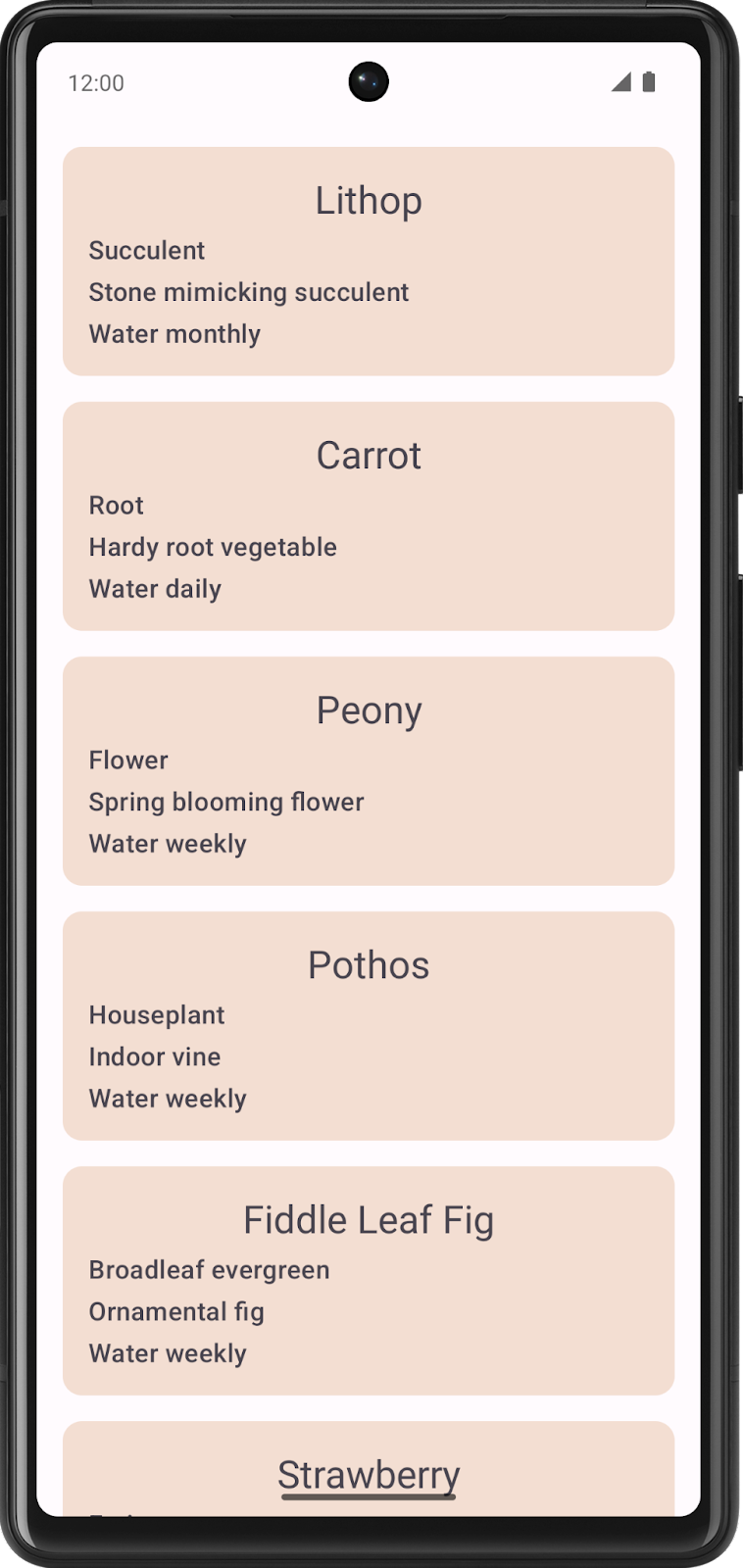

The app currently displays a list of plants in a scrolling list. When you tap on a plant, the app lets you set a reminder to water the plant.

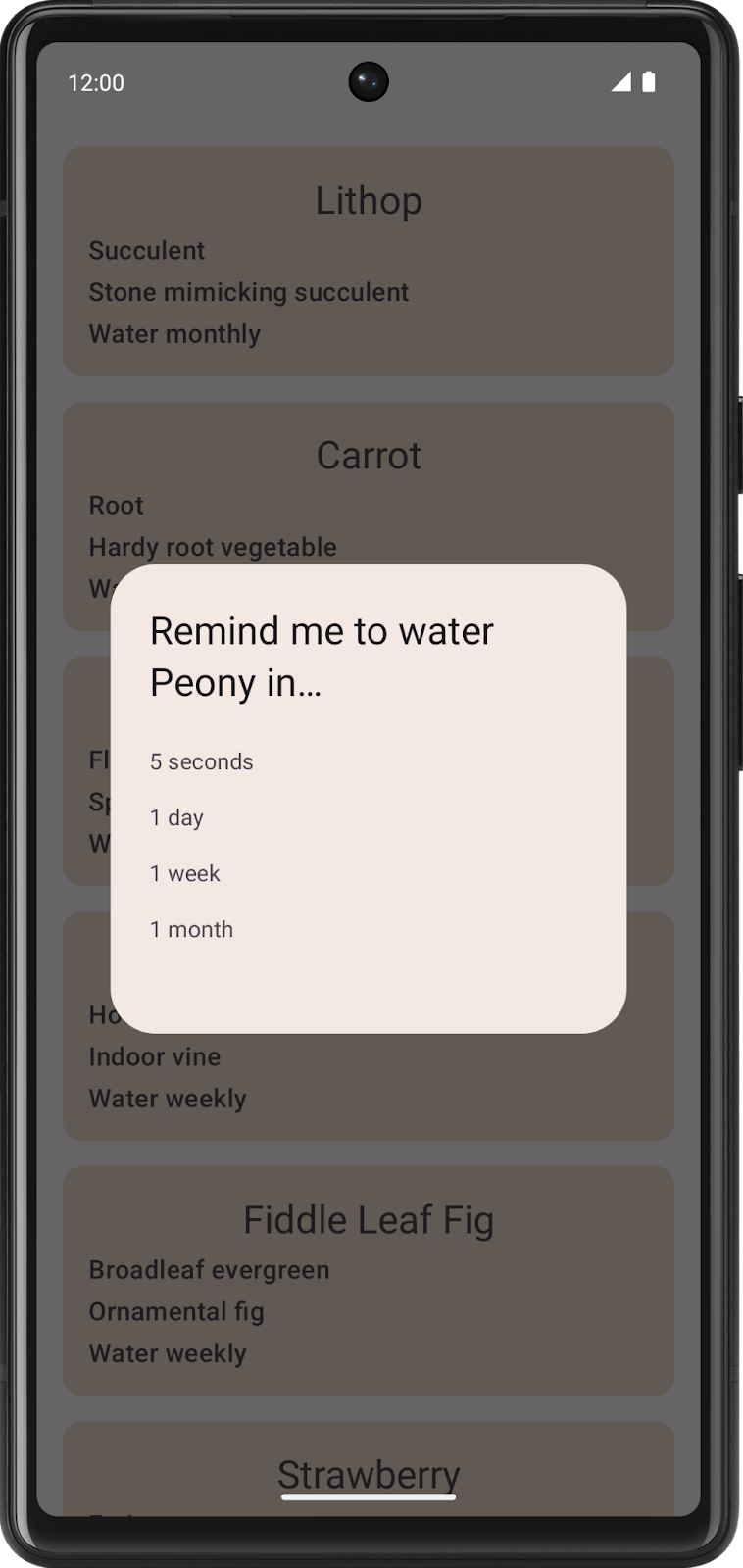

While you can select a reminder timeframe, the reminder notification doesn’t display.
Your job is to implement the background work for the reminder notification to display.

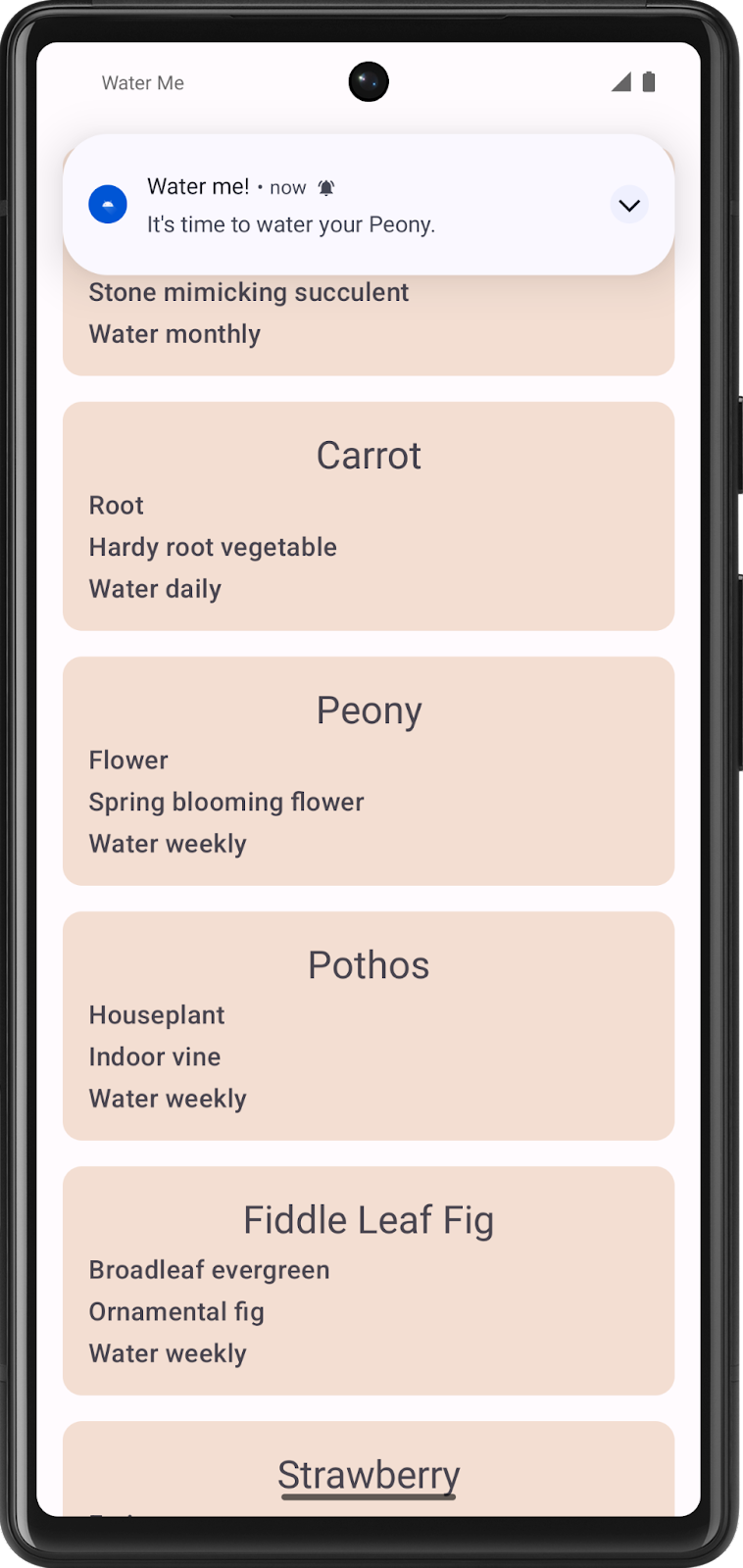

After you complete your code, the app can then display a reminder notification after a selected time duration elapses.

Starter code: Water Me app¶

https://github.com/google-developer-training/basic-android-kotlin-compose-training-waterme/tree/starter
Branch: starter

Clone:

$ git clone https://github.com/google-developer-training/basic-android-kotlin-compose-training-waterme.git
$ cd basic-android-kotlin-compose-training-waterme
$ git checkout starter

Schedule notification using WorkManager¶

The functionality for the Water Me! app is mostly implemented except for the ability to schedule the reminder notification.
The code to make a notification is in the WaterReminderWorker.kt file, which is in the worker package. The WaterReminderWorker class extends the CoroutineWorker class, and the code to make the notification is inside its doWork() method.

This code is already complete, no changes needed.

override suspend fun doWork(): Result {

    val plantName = inputData.getString(nameKey)

    makePlantReminderNotification(
        applicationContext.resources.getString(R.string.time_to_water, plantName),
        applicationContext
    )

    return Result.success()
}

Important

Enable notifications on the app (long-press the app icon, App info, allow notifications), otherwise the notifications will not appear.

Your task is to create a OneTimeWorkRequest that calls this method with the correct parameters from the WorkManagerWaterRepository.

Create work requests¶

To schedule the notification, you need to implement the scheduleReminder() method in the WorkManagerWaterRepository.kt file.

// Add this to class WorkManagerWaterRepository
override fun scheduleReminder(duration: Long, unit: TimeUnit, plantName: String) {

}

Create a variable called data with Data.Builder. The data needs to consist of a single string value where WaterReminderWorker.nameKey is the key and the plantName passed into scheduleReminder() is the value.
solulu
override fun scheduleReminder(duration: Long, unit: TimeUnit, plantName: String) { val data = Data.Builder() data.putString(WaterReminderWorker.nameKey, plantName) }

Create a one-time work request with the WaterReminderWorker class. Use the duration and unit passed into the scheduleReminder() function and set the input data to the data variable you create.

Call the workManager’s enqueueUniqueWork() method. Pass in:

the plant name concatenated with the duration
ExistingWorkPolicy.REPLACE
the workRequestBuilder object

Note

Passing in the plant name, concatenated with the duration, lets you set multiple reminders per plant. You can schedule one reminder in 5 seconds for a Peony and another reminder in 1 day for a Peony. If you only pass in the plant name, when you schedule the second reminder for a Peony, it replaces the previously scheduled reminder for the Peony.

Your app should now work as expected.

Solution code: Water Me app¶

https://github.com/google-developer-training/basic-android-kotlin-compose-training-waterme/tree/main
Branch: main

Clone:

$ git clone https://github.com/google-developer-training/basic-android-kotlin-compose-training-waterme.git
$ cd basic-android-kotlin-compose-training-waterme
$ git checkout main
