Unit 4 Pathway 3 Activity 5: Practice: Build Sports app¶

Before you begin¶

  • In this practice set, you will build on the concepts you learned in this pathway by creating a Sports app. The starter app is fully functional for a mobile layout. Your task is to make it adaptive for large screens.

Prerequisites¶

  • Complete Android Basics in Compose coursework through the Build an adaptive app with dynamic navigation and Build an adaptive app with adaptive layout codelabs.

What you’ll need¶

  • A computer with internet access and Android Studio installed

  • Access to GitHub

What you’ll build¶

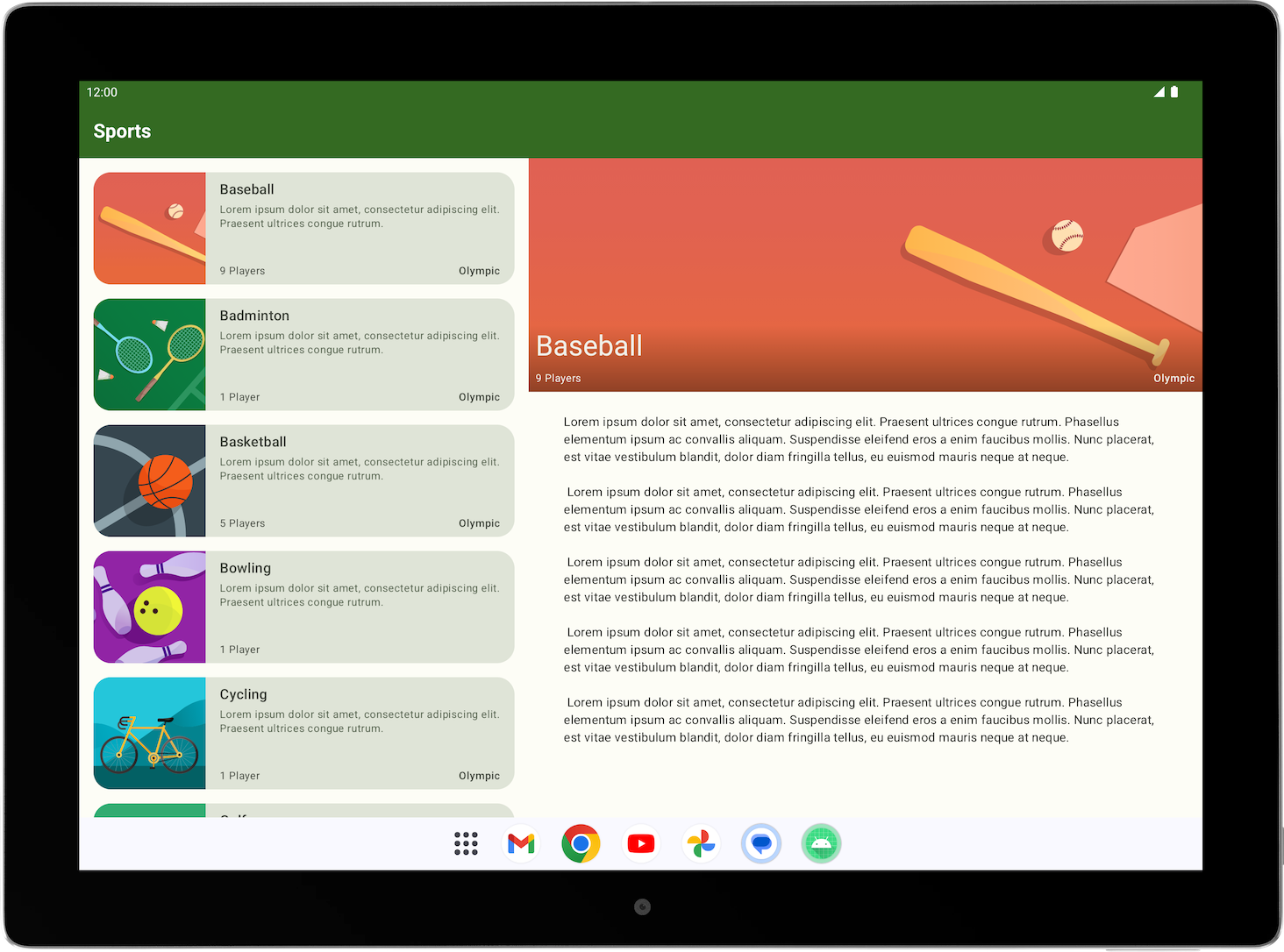

  • A Sports app that adapts to a large screen. The finished app looks like the following image:

    ../_images/unit4-pathway3-activity5-section1-1ce365f97570965e_1440.png

Get started¶

Plan to adapt Sports app for large screens¶

  • To adapt the Sports app for large screens, you first want to establish the type of layout that best displays the app on large screens.

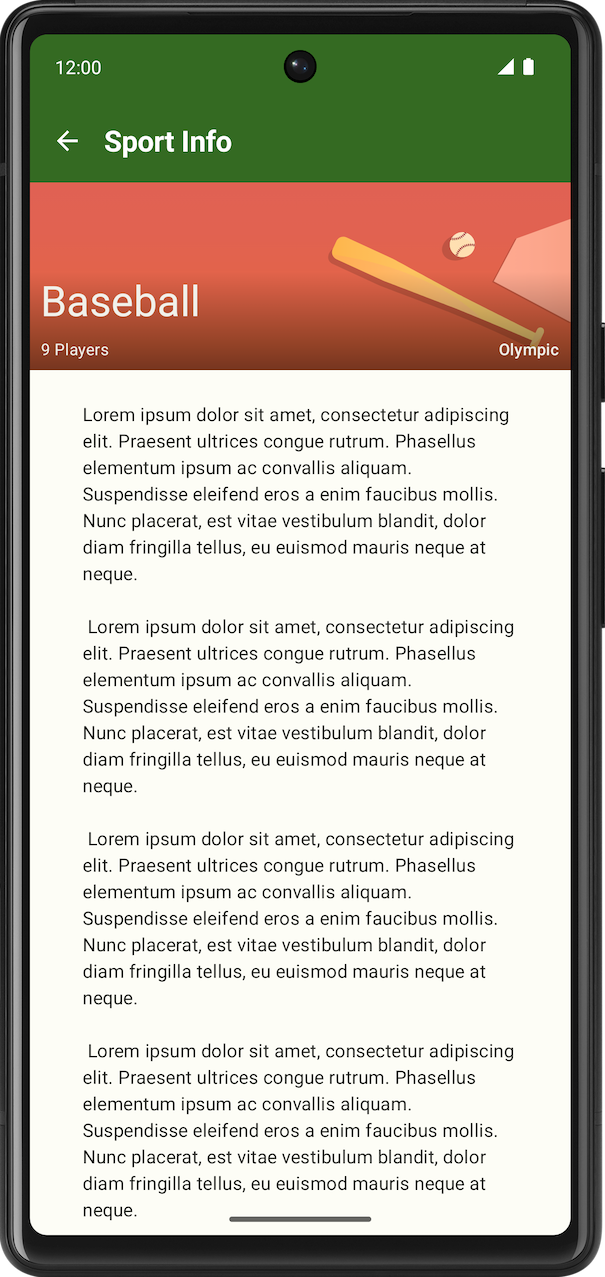

  • Start reviewing the current layouts available on the compact screen size. There are two screens — namely the list screen, which corresponds to the SportsList composable, and the detail screen, which corresponds to the SportsDetail composable.

    ../_images/unit4-pathway3-activity5-section3-87ecbf0695393421_1440.png
    ../_images/unit4-pathway3-activity5-section3-6021d2078a2225ad_1440.png

  • Review the canonical layout to determine the layout that best fits the Sports app use case.

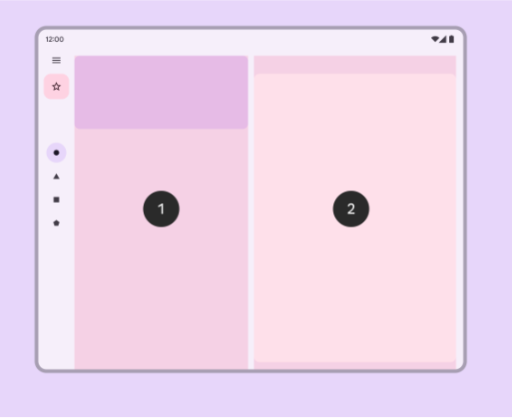

  • Sketch out a possible expanded screen layout. Use either a simple visual design software or a piece of paper to visualize how the screens fit together in the expanded layout.

    ../_images/unit4-pathway3-activity5-section3-bb59e5ec7da56f7a_1440.png

Create the expanded screen in code¶

  • Now that you have a clear view of how the expanded layout looks, let’s translate that into code.

  • Create a composable for the expanded screen that shows both the list and the details screen. You can name it SportsListAndDetails and place it in the SportsScreens.kt file.

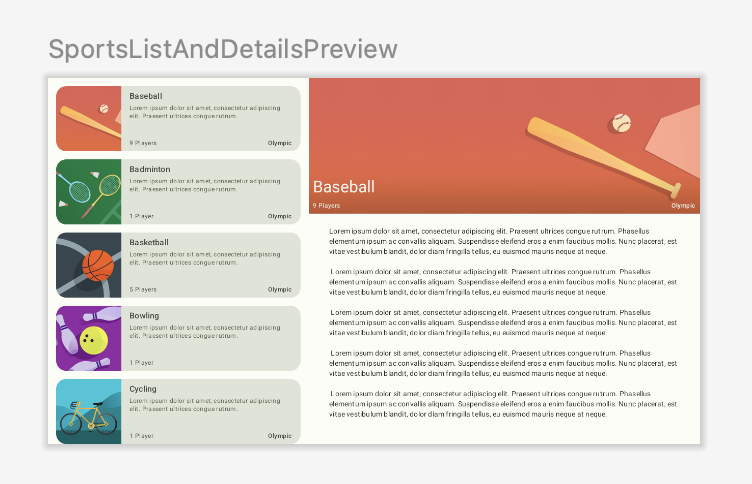

  • Create a composable preview to simplify verification of the UI for the SportsListAndDetails composable.

    ../_images/unit4-pathway3-activity5-section4-678504d0ec535896_1440.png

  • Ensure that the back button behavior is appropriate for the expanded screen. When the user presses the back button, you want them to exit the app when the main screen appears. You can change this behavior by passing the appropriate lambda to the SportsDetails composable. Hint: you can have access to the app’s Activity from (LocalContext.current as Activity).

Make app change to different layout based on window size¶

  • To add the expanded screen composable to the app, complete the following tasks.

  • Add androidx.compose.material3:material3-window-size-class to the app’s dependencies, in build.gradle.kts

  • Calculate windowSizeClass in the MainActivity and pass the widthSizeClass to the SportsApp composable.

  • Create a new directory named utils and create a new file name WindowStateUtils.kt.

  • Add an enum class in WindowStateUtils to denote two different contentType. You can name them ListOnly and ListAndDetail types.

  • In the SportsApp composable, determine the contentType, based on the widthSizeClass.

  • Display the SportsListAndDetails composable when contentType is ListAndDetail and keep the previous behavior when the contentType is ListOnly.

  • For the SportsAppBar composable, change the behavior so that the back button doesn’t appear and the app bar shows Sports when the screen expands in the list page.

  • Verify the UI and navigation capabilities for both compact and expanded screens using the resizable emulator.

Solution code¶
